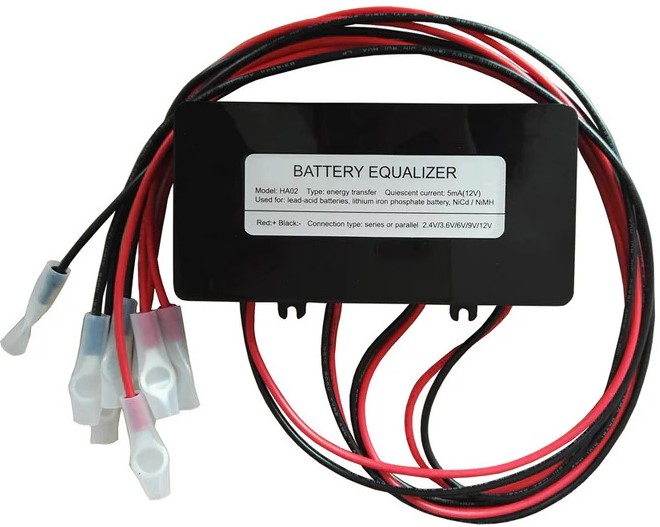

Solarix 48V Battery Equaliser And Balance Charger – Can Be Connected To 48V Battery Banks (4x 12V In Series), Monitors Each Battery Voltage, No External Power Supply Is Required, Retail Box, 1 Year Limited Warranty
Product Overview
The Solarix 48V Battery Equaliser And Balance Charger is used for range of batteries such as Lead-acid , AGM and Lithium batteries which are connected in series to keep battery voltage balanced. On deviation of more than 24 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal. This will improve battery’s performance and extent battery’s life time. No external power supply is required.
The Solarix 48V Battery Equaliser And Balance Charger is used for range of batteries such as Lead-acid , AGM and Lithium batteries which are connected in series to keep battery voltage balanced. On deviation of more than 24 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal. This will improve battery’s performance and extent battery’s life time. No external power supply is required.
The Solarix 48V Battery Equaliser And Balance Charger supports up to 4 × 12V batteries connection by default. No matter whether the bank is connected in series or parallel. Multiple 48V Battery Equalizers can be installed in parallel to equalize 60V, 72V, and 96V battery banks. One equalizer can connect four batteries at a time. The extra cable can be emptied if the battery is less than 4 (positive and negative terminals should be avoided). It won’t affect the equalization effects.
We highly recommend using a voltmeter when working with this product
Specifications
• Stock Code SOLTAICOBEL48V
• Description Solarix 48v Battery Equaliser And Balance Charger
• Battery Banks Of 4 x 12v In Series Can Be Used
• Monitors Each Battery Voltage
• Keeps Batteries In Optimal Condition
• Up To 10amp Inter Battery Balancing
• Reverse Polarity Protection
• Ensures Longer Service Life Of Batteries
• Required For 4x 12v Batteries To Be Connected In Series
• Multiple 48V Battery Equalizers installed in parallel to equalize 60V, 72V, and 96V battery banks.
• Easily Connects To Batteries With Included Wiring
• No External Power Supply Is Required
• Optimization Current-Controlled Between 0 To 10A
• Quiescent Current: 5mA(12V) 1.2mA(2.4V)
• Under Voltage Lockout: 1.8V
• Compatible With Lead-Acid , AGM And Lithium Iron Phosphate Batteries
• Dimensions: 62×124×27 mm
• Weight 0.5kg
• Stock Code SOLTAICOBEL48V
• Description Solarix 48v Battery Equaliser And Balance Charger
• Battery Banks Of 4 x 12v In Series Can Be Used
• Monitors Each Battery Voltage
• Keeps Batteries In Optimal Condition
• Up To 10amp Inter Battery Balancing
• Reverse Polarity Protection
• Ensures Longer Service Life Of Batteries
• Required For 4x 12v Batteries To Be Connected In Series
• Multiple 48V Battery Equalizers installed in parallel to equalize 60V, 72V, and 96V battery banks.
• Easily Connects To Batteries With Included Wiring
• No External Power Supply Is Required
• Optimization Current-Controlled Between 0 To 10A
• Quiescent Current: 5mA(12V) 1.2mA(2.4V)
• Under Voltage Lockout: 1.8V
• Compatible With Lead-Acid , AGM And Lithium Iron Phosphate Batteries
• Dimensions: 62×124×27 mm
• Weight 0.5kg
What’s in the box
• 1x Battery Balancer with built-in connectors
• 1x Manual
