Product Overview

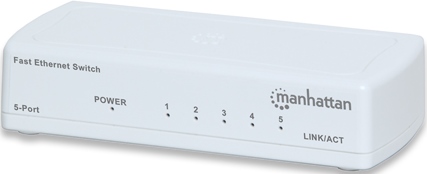

The Manhattan 5-port Fast Ethernet Switch (560672) offers versatile connectivity with five 10/100 Mbps auto-sensing ports, supporting both 10BaseT and 100Base-TX standards. Its store-and-forward architecture and Auto MDI/MDX functionality ensure efficient data transfer and easy setup for various network devices. With support for IEEE 802.3x Flow Control and Backpressure, this compact switch provides reliable performance for small office or home network environments.

• 5-port Fast Ethernet switch expands your network in an instant
• Easy plug-and-play installation — simply power it up and start using it
• Compatible with all Windows and Macintosh systems
• Five 10/100 auto-sensing ports automatically detect optimal network speeds
• Supports any combination of 10 Mbps or 100 Mbps network devices
• Ultra-compact design
• Fanless design ideal for silent operation
• Store and forward switching architecture
Specifications
• Ports: 5 10/100 Mbps NWay switch T ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology
• External AC adapter: 5 V, 0.6 A
Filter/forward rate:
– 10BaseT: 14,880 pps (packets per second)
– 100Base-TX: 148,800 pps (packets per second)
Standards
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE802.3x Flow Control and Backpressure
Environmental
• Dimensions: 97 (W) x 45 (L) x 23 (H) mm (3.81 x 1.77 x 0.9 in.)
• Operating temperature: 0 – 40˚C (32 – 104˚F)
• Humidity: 10 – 90% (non-condensing)
Package Contents
• 5-Port Fast Ethernet Switch
• Power adapter
• User manual
